Batch post processing

Z-set contain a fairly large post-computation facility for generating reduced data from FEA analysis, including interfaces with Zebulon and ABAQUS. Some example computations available are listed below.

Global Post

weibull
volume_above
volume
gil_sevillano
node_interpolation
mm_localization
momentum
average
max/min
gp_xyz
extract2d3d
couple
beremin
average_in_element
average_around

Local Post

ductile_failure
triax
tresca
trace
range
oxidation
norm
multirange
mises
min/max
rainflow
inc_creep_damage
hyper_visco
harmonic
function
fatigue_rainflow
fatigue_S/fatigue_E/fatigue_EE
evcum_sum
eigen2
derivate/integrate
delay
creep
adiabatic_temperature
LCF/HCF
format
initiation

Example

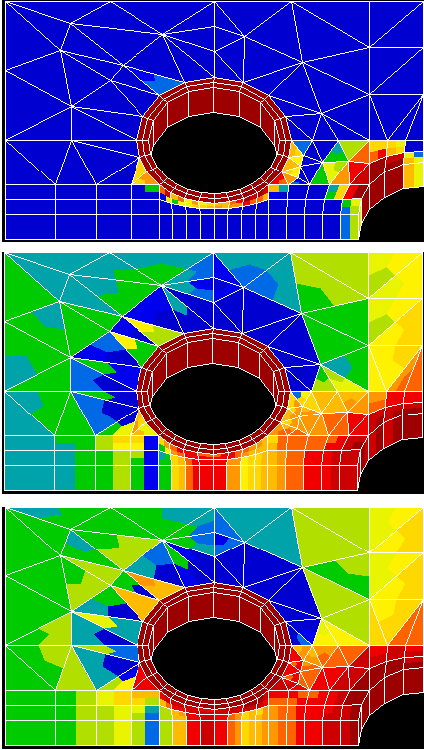

This is a little creep-fatigue example analysis using the post computations for a typical cylinder-head type application.


****post_processing
 ***local_post_processing
  **file integ
  **elset alu
  **material_file al
  **process lcf
   *mode LC
   *fatigue fatigue_S   2
   *creep creep 2
 ***global_post_processing
  **output_number 1
  **file integ
  **elset alu
  **process min
   *list_var NF_S NC_S NR_LC
****return

****post_processing
  **process fatigue_S
   *var  sig
   *mode simple
  **process creep
    *var  sig
****return
