Periodic elements

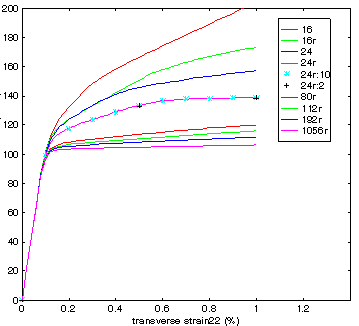

a) H=E/10,000

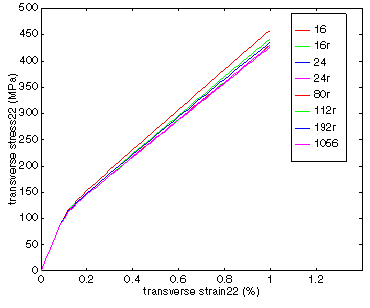

b) H=E/5

Uniaxial transverse stress for element number and element type



2^nd order  elements, r is reduced integration, except for the plots labeled with points 50 equal increments to reach 1% strain, small strain approximation, Von Mises yield, 40% fiber volume, with properties as follows







1056                                                     192r



112r                                                     80r



24r                                                       16r

Cumulative plastic strain (%) at e₂₂=1%, 10*deformation, H=E/10,000



1056                                         192r



112r                                         80r



24r                                           16r

Cumulative plastic strain (%) at e₂₂=1%, 10*deformation, H=E/5
